Media

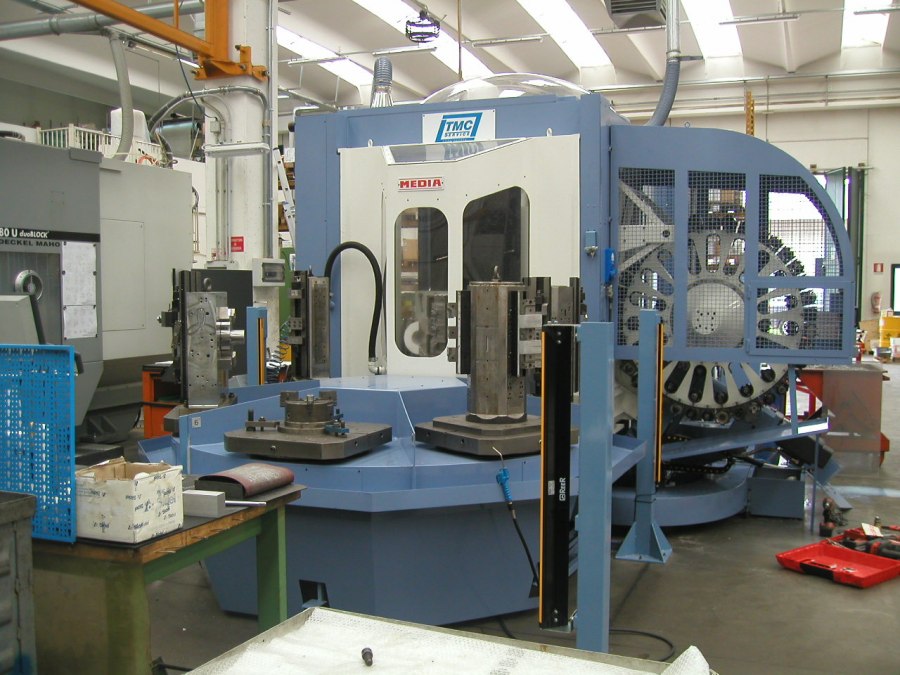

Machining Center Model MEDIA

CNC Siemens 840, or Heidenhain, or D. Electron
Axes Stroke: X - 700mm, Y -  800mm, Z - 850mm
Spindle: OMLAT PMD00076 - ISO 45 with internal cooling system
Wheel tool change 76 tools
Spindel speed: up to 6000 rpm
Rotary table B-axis number of positions: 360
Chip conveyor
Motors and Drives can be choosen by customer
External coolant reservoir 1000 l with low pressure pump
High pressure pump 16 bar
Pallet change : 6 pallets 630X630 mm – max. load 800 Kg
3 load/unload stations
Complete cover
Pneumatic system FESTO
Optical measuring scales Heidenhain
Standard Colours white/blue RAL9002/RAL5014
Electrical circuit diagram and PLC documentation
User- and service manual
